High CRI>90 DC12V Flexible COB Strip Light 10MM Width 10W IP68 White Red Blue Green For KTV Light/ Swimming Pool Light
Product Description
COB FOB STRIP: High Density, High CRI, High Brightness, Uniform Light Emission, No Graininess, No Light Spot, No Shadow, Customized Light Color according to Customers' Requirements, Achieve a Perfect Linear Light Source. IP20 for Indoor Use Only, IP67 for Outdoor Use Only, Multiple Functions, Used in Multiple Occasions
| Product Information |
| Item | 10MM 10W/M Flexible Led Cob Strip light |
| Product name | DC12V/24V flexible led light strip |
| Power | 10W/M, 50W/Roll |
| Voltage | DC12V/24V |
| light color | Red / Blue/ Green / Yellow/ 2700K/3000K/4000K/6500K |
| Chip Material | InGaN |
| CRI | 90 |
| Luminous efficacy | 110-120LM/W |
Specification
- LEDs Type: 10MM 10W/M Flexible Led Cob Strip
- Input Voltage: DC24V/ DC12V
- Wattage: 10W/Metre
- Total length: 3.3Ft/ M
- FPCB width: 10MM
- View angle: 120°
- LED quantity: 480LEDs
- Lumen: 1350-1800lm
- Color Rendering Index: ＞80
- Waterproof level: IP20 Non-waterproof/ IP68 waterproof
- Color temperature: 2700K/ 3000K/ 4000K/ 6500K/ Red/ Blue/ Green/ Yellow
- Operation temperature: -20℃-+45℃
- Storage temperature: -40℃-+85℃
Product characteristic parameters
| Company abbreviation | Product size (mm) | Input voltage (V) | Half a meter powe (W) | Half-meter shear group numbe | Emitting color | CRI | Photosynthetic efficiency level (lm/w) | Color tolerance |
| (xuancai) | 500*10mm | DC24V | 5W | 10 | 2700K | ＞90 | 100-105 | ≤3 |
| (xuancai) | 500*10mm | DC24V | 5W | 10 | 3000K | ＞90 | 100-105 | ≤3 |
| (xuancai) | 500*10mm | DC24V | 5W | 10 | 4000K | ＞90 | 115-120 | ≤3 |
| (xuancai) | 500*10mm | DC24V | 5W | 10 | 6500K | ＞90 | 115-120 | ≤3 |
Reliability test standards
| (Apilot project) | (Number of test) | (Test conditions) | (Decision criteria) | (Test Vequipment) |
| Cold and hot shock | 10pcs | -40℃/30min -- 120℃/30min, one Cycle per hour, 100 cycles in total. | No glue crack/dead light | Cold and heat shock chamber |
| The normal temperature aging | 10pcs | Ambient temperature 25±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once. | 1Droop 10% or less 2.No glue crack/dead light | Normal temperature aging block |
| High temperature and high humidity | 10pcs | Ambient temperature 85±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once. | 1.Droop 10% or less 2. No glue crack/dead light | High temperature and high humidity aging tank |
Packing method
1. Reel packaging
| LED light barwidth | Reel size | Meters per roll | Number of rolls per carton |
| 4mm | 5.1 inches | 5 | 10 |
| 8mm | 5.1 inches | 5 | 10 |
| 10mm | 5.1 inches | 5 | 10 |
2. Blister box packaging
| LED light barwidth | Blister box size | The packing layer | Number of packing strips per carton |
| 4mm | 510*123*25mm | 10 | 300 |
| 8mm | 510*123*25mm | 10 | 150 |
| 10mm | 510*123*25mm | 10 | 120 |

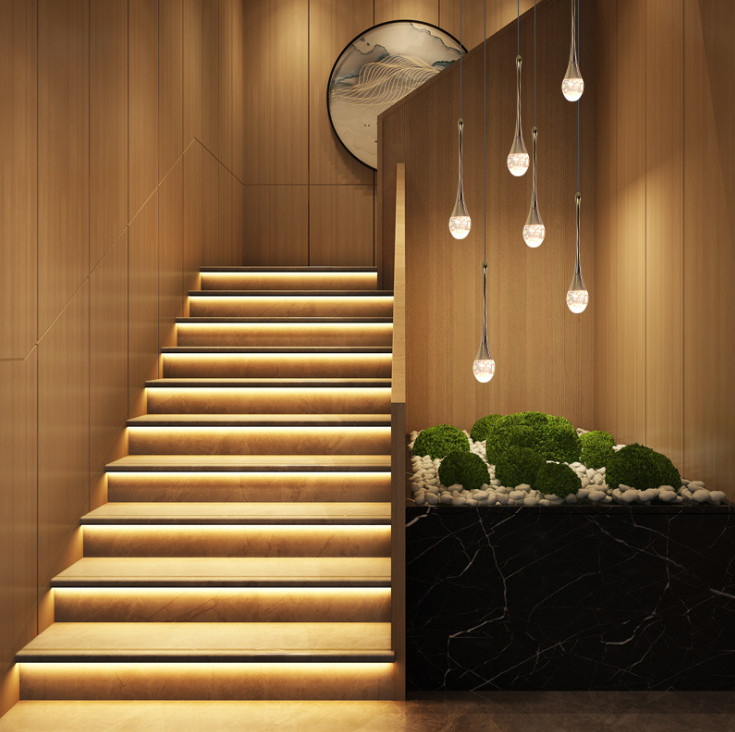

Application to Anywhere You Want to Use
Wonderful Colored Lighting for Stair, Swimming pool, Bedroom, Ceiling, Kitchen Cabinet, Cupboard, Bar, Billboard , Bedroom , Decoration ... etc.
Trade Show
Customers feedback
1. These are much better when used as under cabinet lighting than the standard chip style. Especially with reflective countertops. It's much more uniform and clean looking in the reflection. I install many strips through my electrical business. These were very great.
2. My customer is so happy with this lighting. The leds are bright and dimmable and a great white shade., not blue or amber. Most importantly they are a solid light, no dots. Looks very high end. This is the only led strip lighting I will install from now on.
3. I have used a ton of other products from skye and this is by far my favorite. It looks awesome without all the individual diodes. I used a 24v transformer and made sure the wattage was rated higher that the 3w per ft I planned to use. These bend much tighter and are more flexible than other brands if used as well. I combine these with aluminum channels I buy from amazon to make them look like a fixture, including inside and outside corners.
Awesome light
4. These lights are excellent! Very well made and stick very well. The look behind my tv is freaking awesome! I cant tell you how much better my living room looks now! Definitely a great choice, will buy more!
5. I normally don't write reports but I was surprised for good about this product. Unbelieved brightness. Consider using a dimmer to control the bright. For sure I will buy a few more for my home project.
